1ry & 2ry T abnormalities

Primary and secondary (ST)T wave abnormalities in a patient
I
V1
V4
.
V6

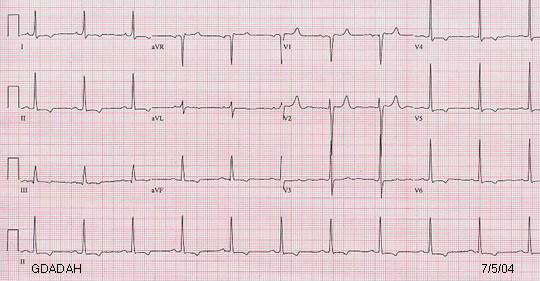

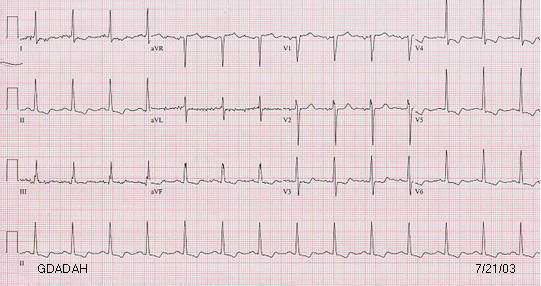

Patient. 82 year old female with multiple medical problems include coronary artery bypass surgery in 1988, end stage renal disease on dialysis, hypertension and severe aortic stenosis. The top tracing represents her baseline ECG which shows LVH pattern. The bottom tracing was done when she was admitted with chest pain with STT abnormalities likely from myocardial ischemia.
I . V4 . V6

Go 1ry T wave abnormalities
Go 2ry T wave abnormalities
Go to ST-T-U abnormalities menu
Go to main menu

Primary and secondary (ST)T wave abnormalities in a patient

I	V1	V4	.	V6
Patient. 82 year old female with multiple medical problems include coronary artery bypass surgery in 1988, end stage renal disease on dialysis, hypertension and severe aortic stenosis. The top tracing represents her baseline ECG which shows LVH pattern. The bottom tracing was done when she was admitted with chest pain with STT abnormalities likely from myocardial ischemia.

I	.	V4	.	V6
