Acute inferior MI, case 2

II
III
aVF
I
aVL
V1
V2
V
V6

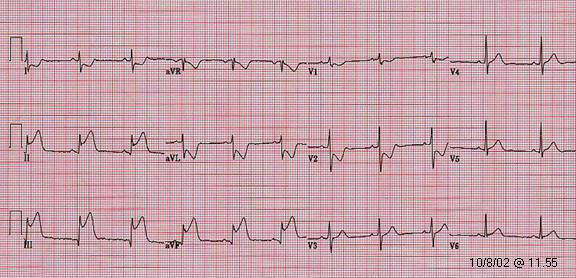

Acute inferior MI (Case 2)
ST elevation in II, III, aVF. Reciprocal ST depression in I, aVL, V1-V3 (V1-V2 in this case). See ST T abnormalities in acute ST elevation MI table

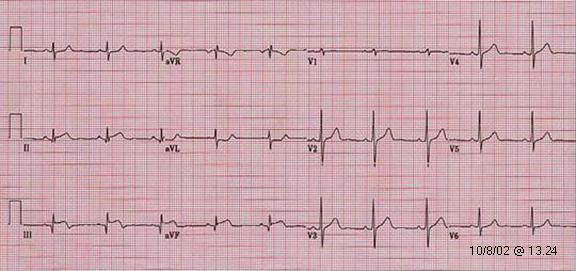

Evolving inferior MI. One hour following emergency PCI/stent procedure.
Stage 3 evolving pattern with decreasing ST elevation and T wave begins to invert (Compare lead III of the top and the bottom ECG). Q wave is already formed. Reciprocal ST depression is usually resolved fast (I, aVL, V1-V2). Note that the duration of evolving pattern is much shorter with successful rapid reperfusion treatment (thrombolysis or primary PCI) like in this case.
Go to acute Inferior MI ST elevation variety
Go to ST T abnormalities in acute ST elevation MI table
Go to Evolving ST T abnormalities in acute ST elevation MI
Go to Inferior MI menu. / Go to MI menu. / Go to main menu


II	III	aVF	I	aVL	V1	V2	V	V6
Acute inferior MI (Case 2)
ST elevation in II, III, aVF. Reciprocal ST depression in I, aVL, V1-V3 (V1-V2 in this case). See ST T abnormalities in acute ST elevation MI table

Evolving inferior MI. One hour following emergency PCI/stent procedure.
Stage 3 evolving pattern with decreasing ST elevation and T wave begins to invert (Compare lead III of the top and the bottom ECG). Q wave is already formed. Reciprocal ST depression is usually resolved fast (I, aVL, V1-V2). Note that the duration of evolving pattern is much shorter with successful rapid reperfusion treatment (thrombolysis or primary PCI) like in this case.
